<p style="text-align: left;">All packaged skids may be tailored to include:</p>

<ul>
 	<li style="text-align: left;">Pumps</li>
 	<li style="text-align: left;">Air separators</li>
 	<li style="text-align: left;">Expansion tank</li>
 	<li style="text-align: left;">Common inlet/outlet headers with isolation valves</li>
 	<li style="text-align: left;">Flex couplers</li>
 	<li style="text-align: left;">Pot feeders</li>
 	<li style="text-align: left;">Control panel</li>
</ul>

Triplex Pump Packages

Connections

Dimensions (L x W)

pp1-0342

PP1-0342

3in-3-pp-pid

3in - (3) PP P&ID

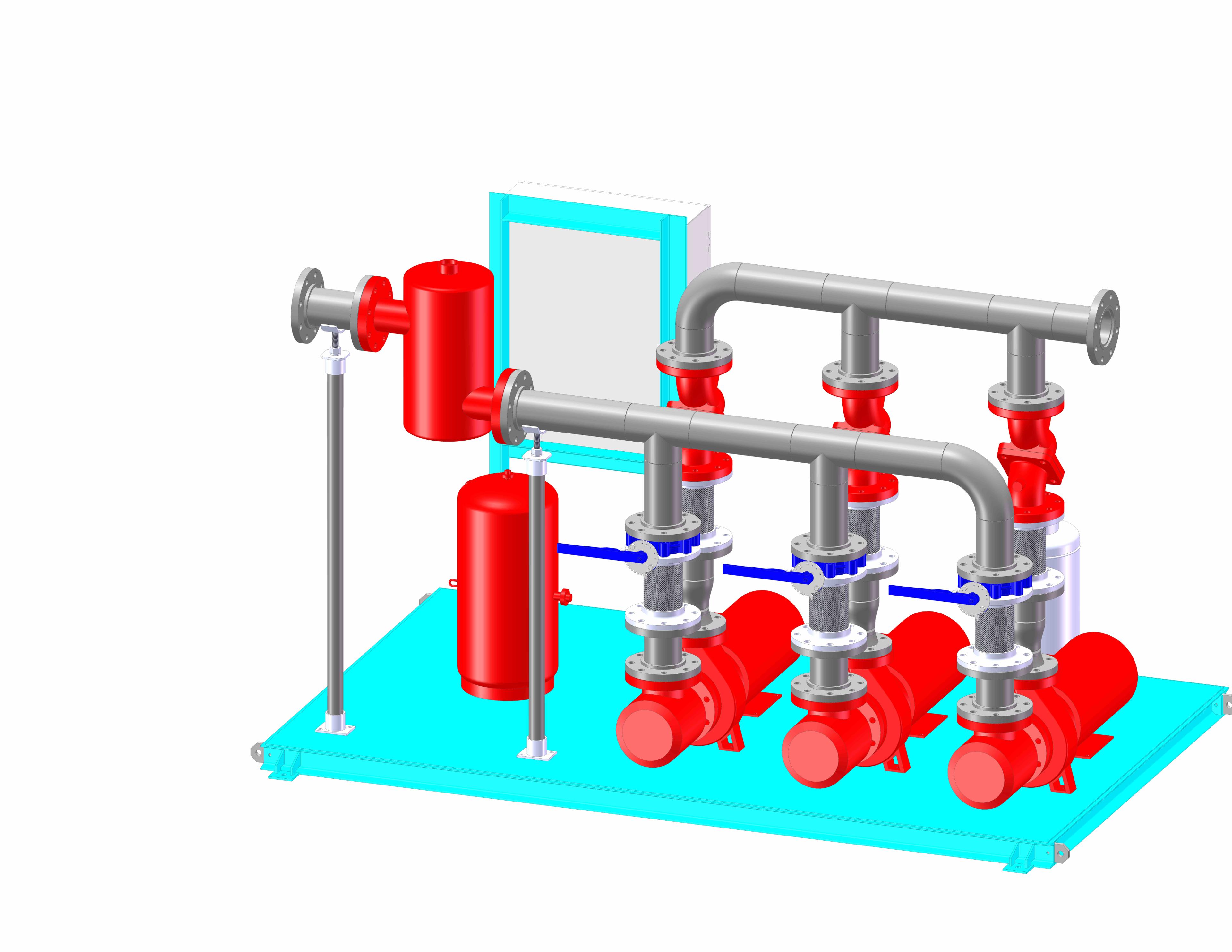

pp1-0343

PP1-0343

4in-3-pp-pid

4in - (3) PP P&ID

pp1-0344

PP1-0344

6in-3-pp-pid

6in - (3) PP P&ID

pp1-0345

PP1-0345

8in-3-pp-pid

8in - (3) PP P&ID

pump-package-form-2019

Pump Package RFQ Form

Puroflux is committed to meet our customer’s technical requirements, schedules and budgets. Our engineering staff’s attention to detail and dedication to provide the best possible service, along with our focus on quality manufacturing and response time is unparalleled.

Pump package systems can be designed based on a specific written specification, functional requirements or even from a verbal description of required operation. Each pump package system will contain carefully matched components for proper operation.

Every pump package system is functionally tested and must pass a rigorous quality control check prior to shipment. A complete hydrostatic and operational test is performed on every pump package system. All control circuits are checked for continuity and hot tested at voltage.

Each interface point is checked, labeled and matched to the engineering drawings for ease of installation in the field. The completed pump package system is accompanied by a full set of documentation including CAD layout and wiring schematic, component description and operating sequences.
<h3>Advantages</h3>
<ul>
 	<li>PUROFLUX pump packages ensure a greater reliability of the overall system operation. Each pump package system is built to meet the unique requirements of a specific application.</li>
 	<li>PUROFLUX pump package systems offer the simplest possible solution for both retrofit and new construction.</li>
</ul>
<a href="https://wordpress.puroflux.com/wp-content/uploads/2018/11/pump_packages_brochure.pdf">Data Sheet
Pump Package Brochure</a>

Triplex Pumps 2-inch header

Triplex Pumps 3-inch header

Triplex Pumps 4-inch header

Triplex Pumps 6-inch header

Triplex Pumps 8-inch header

Puroflux offers a broad spectrum of permanent media filters in a range of materials and configurations.

<ul>
 	<li>Available in flow rates of 15, 35, 65, 100, 140, 190 and 250 GPM.</li>
 	<li>Positive filtration down to 10-micron. (lower micron media available).</li>
 	<li>Non-code 304-stainless steel vessel rated at 75 psi with epoxy coated carbon steel hand-hole covers (optional higher pressure ratings, ASME code stamp, and fiberglass vessel available).</li>
 	<li>Industrial grade brass 3-way ball valves and Sch. 80 PVC interconnecting piping (model PF-2036, PF-2042, and PF-2048 equipped with cast iron butterfly valves).</li>
 	<li>Cast iron bronze fitted, close-coupled end suction centrifugal pump, TEFC motor and cast iron pre-strainer with removable SST basket.</li>
 	<li>Skid - fusion bonded polyester coated carbon steel.</li>
 	<li>Automatic option includes: UL labeled NEMA 4X control cabinet, door disconnect switch, motor short circuit/overload protection, electric actuator, step-down transformer, pressure differential switch, adjustable solid state timer and 24-hr. backwash clock.</li>
</ul>

PF-20

<ul>
 	<li>Available in flow rates of 15, 35, 65, 100, 140, 190 and 250 GPM.</li>
 	<li>Positive filtration down to 10 micron (lower micron media available).</li>
 	<li>Fusion bonded epoxy lined/polyester coated carbon steel vessel rated at 100 psi (optional higher pressure ratings and ASME code stamp available).</li>
 	<li>Industrial grade brass 3-way ball valves and Sch. 80 PVC face piping (model PF-3036, PF-3042, and PF-3048 equipped with cast iron butterfly valves).</li>
 	<li>Close coupled, end suction centrifugal pump &amp; TEFC motor with CI pre-strainer &amp; SST basket.</li>
 	<li>Skid - fusion bonded polyester coated carbon steel.</li>
 	<li>Automatic option includes: UL labeled NEMA 4X control cabinet, door disconnect switch, motor short circuit/overload protection, electric actuator, step-down transformer, pressure differential switch, adjustable solid state timer and 24 hr. backwash clock.</li>
</ul>

PF-30

<ul id="u71185-13" class="list0 nls-None">
 	<li>Available in flow rates from 65 to 1,000 GPM.</li>
 	<li>Positive filtration down to 10 micron (5 micron optional).</li>
 	<li>Fusion bonded epoxy lined/polyester coated carbon steel vessel rated at 50 psi .(optional higher pressure ratings and ASME code stamp available).</li>
 	<li>Cast iron lugstyle butterfly valves with aluminum bronze disc.</li>
 	<li>Automatic option includes: NEMA 4X control cabinet, door disconnect switch, pressure differential switch, pneumatic actuator, adjustable solid state timer and 24 hr. backwash clock.</li>
 	<li>Optional pump, pre-strainer, face piping and skid are available.</li>
</ul>

PF-40

<ul id="u71359-13" class="list0 nls-None">
 	<li>Available in flow rates of 15, 35, 65, 100, 140 and 190 GPM.</li>
 	<li>Positive filtration down to 5 micron.</li>
 	<li>Fusion bonded epoxy lined/polyester coated carbon steel vessel rated for 150 psi at 150º F (optional higher pressure ratings and ASME code stamp available).</li>
 	<li>Industrial grade brass 2-way ball valves (model PF-5036 &amp; 5042 equipped with cast iron butterfly valves).</li>
 	<li>Automatic option includes: NEMA 4X control cabinet, door disconnect switch, electric actuators, adjustable solid state timer and 24 hr. backwash clock.</li>
 	<li>Optional pump, pre-strainer, face piping and skid are available.</li>
</ul>

PF-50

Puroflux offers a broad spectrum of separators in a range of materials and configurations.

<ul id="u78627-21" class="list0 nls-None">
 	<li>Available in flow rates from 6 to 18,000 GPM.</li>
 	<li>Removes suspended particulate as low as 45 micron.</li>
 	<li>150 psi working pressure.</li>
 	<li>Fusion bonded polyester coated carbon steel vessel.</li>
 	<li>Accumulation chamber clean-out (std. on 4" unit and larger).</li>
 	<li>True tangential entry.</li>
 	<li>Industrial grade manual purge valve.</li>
 	<li>1/4" manual air bleed valve.</li>
 	<li>0-160 psi gauges on inlet/outlet.</li>
 	<li>Options: Auto purge, higher pressure ratings, ASME code stamp and stainless steel construction available.</li>
</ul>

PF-61

<ul id="u80875-21" class="list0 nls-None">
 	<li>Available in flow rates from 6 to 18,000 GPM.</li>
 	<li>Removes suspended particulate as low as 45 micron.</li>
 	<li>150 psi working pressure.</li>
 	<li>Fusion bonded polyester coated carbon steel vessel.</li>
 	<li>Accumulation chamber clean-out (std. on 4" unit and larger).</li>
 	<li>True tangential entry.</li>
 	<li>Industrial grade manual purge valve.</li>
 	<li>1/4" manual air bleed valve.</li>
 	<li>0-160 psi gauges on inlet/outlet.</li>
 	<li>Options: Auto purge, higher pressure ratings, ASME code stamp and stainless steel construction available.</li>
</ul>

PF-62

<ul id="u82298-19" class="list0 nls-None">
 	<li>Available in flow rates from 50 to 1,200 GPM.</li>
 	<li>Standard unit equipped with PF-61 series separator.</li>
 	<li>Recovery vessel - 304 stainless steel construction, stainless steel support basket, 25 micron bag, swing type eye-bolt cover, pressure differential gauge, manual air relief valve, flow controller and isolation ball valves.</li>
 	<li>Cast iron bronze fitted, close-coupled end suction centrifugal pump with TEFC motor.</li>
 	<li>Cast iron pre-strainer with removable SST basket.</li>
 	<li>Control Panel - UL labeled NEMA 4X cabinet with door disconnect switch, motor short circuit/overload protection and pump HOA switch.</li>
 	<li>Skid - fusion bonded polyester coated carbon steel.</li>
 	<li>Sch. 80 PVC interconnecting piping.</li>
 	<li>Options: Auto purge, dry contact alarm for recovery vessel, removable dome, 22 1/2° profile separator.</li>
</ul>

PF-63

<ul id="u84679-21" class="list0 nls-None">
 	<li>Available in flow rates from 50 to 1,200 GPM.</li>
 	<li>Standard unit equipped with PF-61 series separator.</li>
 	<li>Cast iron bronze fitted, close-coupled end suction centrifugal pump with TEFC motor.</li>
 	<li>Cast iron pre-strainer with removable SST basket.</li>
 	<li>Control Panel - UL labeled NEMA 4X cabinet with door disconnect switch, motor short circuit/overload protection, adjustable purge timer, purge and pump HOA switches.</li>
 	<li>Skid - fusion bonded polyester coated carbon steel.</li>
 	<li>Sch. 80 PVC interconnecting piping.</li>
 	<li>Automatic purge complete with electrically actuated industrial grade ball valve.</li>
 	<li>Options: Manual purge, removable dome, 22 1/2° profile separator.</li>
 	<li>Designed for applications requiring higher pump head such as basin sweeper installations and non-chemical water treatment.</li>
</ul>

PF-64

PF-64 H

<ul id="u85816-21" class="list0 nls-None">
 	<li>Available in flow rates from 6 to 18,000 GPM.</li>
 	<li>Removes suspended particulate as low as 45 micron.</li>
 	<li>150 psi working pressure.</li>
 	<li>Fusion bonded polyester coated carbon steel vessel.</li>
 	<li>Accumulation chamber clean-out (std. on 4" unit and larger).</li>
 	<li>True tangential entry.</li>
 	<li>Industrial grade manual purge valve.</li>
 	<li>1/4" manual air bleed valve.</li>
 	<li>0-160 psi gauges on inlet/outlet.</li>
 	<li>Options: Auto purge, higher pressure ratings, ASME code stamp and stainless steel construction available.</li>
</ul>

PF-65

<ul id="u86883-21" class="list0 nls-None">
 	<li>Available in flow rates from 6 to 18,000 GPM.</li>
 	<li>Removes suspended particulate as low as 45 micron.</li>
 	<li>150 psi working pressure.</li>
 	<li>Fusion bonded polyester coated carbon steel vessel.</li>
 	<li>Accumulation chamber clean-out (std. on 4" unit and larger).</li>
 	<li>True tangential entry.</li>
 	<li>Industrial grade manual purge valve.</li>
 	<li>1/4" manual air bleed valve.</li>
 	<li>0-160 psi gauges on inlet/outlet.</li>
 	<li>Options: Auto purge, higher pressure ratings, ASME code stamp and stainless steel construction available.</li>
</ul>

PF-66

<ul id="u88479-17" class="list0 nls-None">
 	<li>Single bag units: fully constructed of 304 SS with swing type eye-bolt cover.</li>
 	<li>150 psi working pressure (higher pressure ratings and ASME code available)</li>
 	<li>Stainless steel support basket(s)</li>
 	<li>1/4" manual air bleed valve</li>
 	<li>Pressure differential indicator</li>
 	<li>One year limited warranty</li>
 	<li>Options:
<ul id="u88479-17" class="list0 nls-None">
 	<li>Auxiliary dirty bag alarm contact, plumbing package, 25/75/100 micron polyester collection bags.</li>
 	<li>Multi-bag units with fusion bonded epoxy lined/polyester coated carbon steel vessel with hinged T-bolt cover also available.</li>
</ul>
</li>
</ul>

PF-RV

Its patented design and high quality materials used in manufacturing guarantee an extended life with high resistance.

pf_70

Data Sheet

disc_filters

AZUD HELIX

Puroflux offers an array of design configurations for our pump package systems.

Duplex Pump Packages

Pump Package

Puroflux is committed to meet our customer’s technical requirements, schedules and budgets.

puroflux-ul-control-panel-2010

Brochure

vfd-control-panel-specification

VFD Control Panel Specification

switch_control_panel

STANDARD & INDUSTRIAL

pf_61

full-flow-pf-61-pfrv

PF-61 & PFRV

full-flow-pf-61-with-auto-purge

PF-61 w/ Auto Purge

60_om

Puroflux's complete line of separator and separator packages lend themselves to a wide range of applications for removing suspended particulate. Our standard equipment can handle flow ranges from 5 to 20,000 gpm and operating pressures up to 150 psi. Constructed from carbon steel, these rugged units can be installed in the harshest of environments. Custom separator systems can be designed and fabricated to meet specific requirements.
<h3>Description of Operation Hydrocyclone Separator</h3>
The basis for solid-liquid separation in the PF-60 series is the centrifugal forces created in the body of the separator. As the pressurized process carrying fluid1 enters tangentially into the entrance chamber of the separator, it starts a downward helical flow. This downward spiral motion causes high centrifugal forces to act on the carrying fluid. The solids in suspension are pushed to the wall of the separator and then move downward to the accumulation chamber (underflow)2 at the bottom of the separator. The clean process fluid then reverses its axial direction and moves upward in a helical flow exiting the separator (overflow)3.

<iframe src="https://www.youtube.com/embed/vyAzPg7a2hw" width="560" height="315" frameborder="0" allowfullscreen="allowfullscreen"><span data-mce-type="bookmark" style="display: inline-block; width: 0px; overflow: hidden; line-height: 0;" class="mce_SELRES_start">﻿</span></iframe>

There are many factors that can contribute to the success of the solid-liquid separator. It is important to understand and consider several issues when installing a hydrocyclone separator on a process system: system flow, velocity of the process fluid through the separator, pressure loss, specific gravity of the carrying fluid and particulate to be removed, and the purge cycle.

It is vital that the velocity of the carrying fluid be kept high in order to develop centrifugal forces in the body of the separator. Puroflux separators are designed with varying flow rates to insure that the separator selected will perform as expected.

Flow rate versus pressure loss are given for various PF-60 series separators to aid in selection (see individual specification sheets). The ideal operating pressure drop through a Puroflux separator is between 4-10 psi.

It is also important to note that the specific gravity of the solid to be separated from the carrying fluid must be higher than the specific gravity of the carrying fluid. The greater the specific gravity of the contaminate, the higher the removal efficiency of the separator. Puroflux separators can remove particulate as low as 45 micron (nominal) with a specific gravity greater than 1.2 on a recirculating basis.

Purging is necessary to eliminate the high concentration of solids build-up in the separator’s accumulation chamber and can be performed while the separator remains on-line. The level of contaminants in the process system will dictate the purge frequency and may warrant the use of an optional recovery system. If a recovery system is used, the separator will purge constantly at a low flow rate.

Triplex Pump Packages Series
