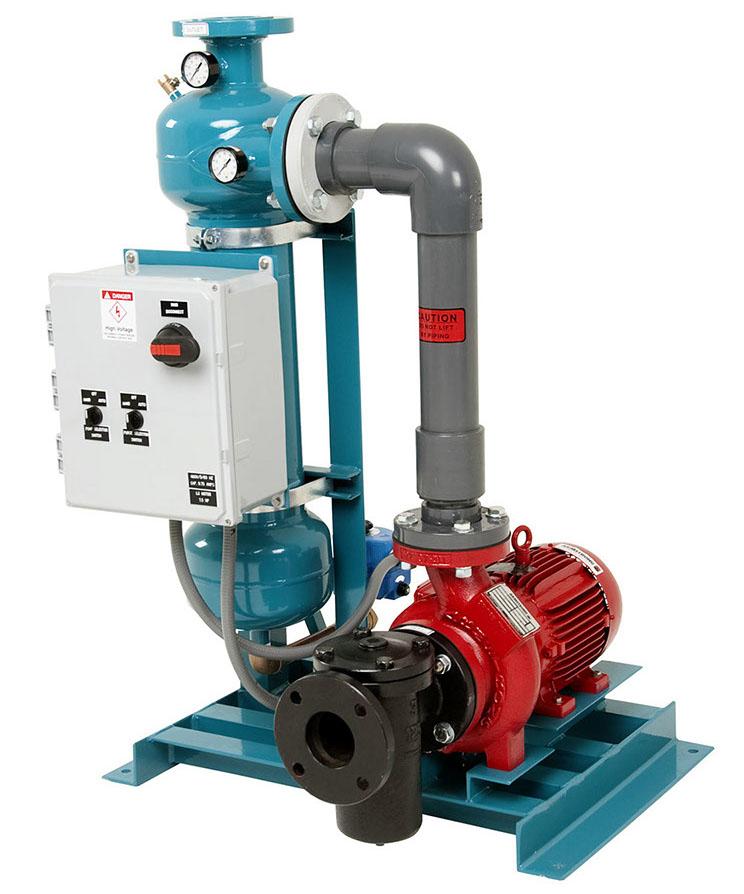

PF-64 H Series
PUMP PACKAGE SYSTEM 150 PSI
Details
- Available in flow rates from 50 to 1,200 GPM.
- Standard unit equipped with PF-61 series separator.
- Cast iron bronze fitted, close-coupled end suction centrifugal pump with TEFC motor.
- Cast iron pre-strainer with removable SST basket.
- Control Panel – UL labeled NEMA 4X cabinet with door disconnect switch, motor short circuit/overload protection, adjustable purge timer, purge and pump HOA switches.
- Skid – fusion bonded polyester coated carbon steel.
- Sch. 80 PVC interconnecting piping.
- Automatic purge complete with electrically actuated industrial grade ball valve.
- Options: Manual purge, removable dome, 22 1/2° profile separator.
- Designed for applications requiring higher pump head such as basin sweeper installations and non-chemical water treatment.
Select a Model
View product summary
PF-64H-012
- Flow Rate: 50 GPM
- Motor: 5 HP
- Connection: 2" flng (In) 1.25"mpt (Out)
- Volume: 2 gal.
- Dimensions: 40"x42"x30"
- Weight, lbs: 377 (shipping) 393 (operation)
- Purge: 1” fpt
SUBMITTAL SHEET
- Download:DOWNLOAD
PF-64H-015
- Flow Rate: 80 GPM
- Motor: 5 HP
- Connection: 2" flng (In) 1.5"mpt (Out)
- Volume: 2 gal.
- Dimensions: 40"x42"x30"
- Weight, lbs: 379 (shipping) 395 (operation)
- Purge: 1” fpt
SUBMITTAL SHEET
- Download:DOWNLOAD
PF-64H-020
- Flow Rate: 110 GPM
- Motor: 7.5 HP
- Connection: 3" flng (In) 2"mpt (Out)
- Volume: 7 gal.
- Dimensions: 34"x50"x41"
- Weight, lbs: 394 (shipping) 451 (operation)
- Purge: 1” fpt
SUBMITTAL SHEET
- Download:DOWNLOAD
PF-64H-025
- Flow Rate: 160 GPM
- Motor: 7.5 HP
- Connection: 3" flng (In) 2.5"mpt (Out)
- Volume: 8 gal.
- Dimensions: 40"x50"x34"
- Weight, lbs: 561 (shipping) 622 (operation)
- Purge: 1” fpt
SUBMITTAL SHEET
- Download:DOWNLOAD
PF-64H-030
- Flow Rate: 220 GPM
- Motor: 10 HP
- Connection: 3" flng (In) 3"flng (Out)
- Volume: 8 gal.
- Dimensions: 40"x51"x36"
- Weight, lbs: 592 (shipping) 658 (operation)
- Purge: 1” fpt
SUBMITTAL SHEET
- Download:DOWNLOAD
PF-64H-040A
- Flow Rate: 330 GPM
- Motor: 15 HP
- Connection: 4" flng (In) 4" flng (Out)
- Volume: 15 gal.
- Dimensions: 45"x63"x36"
- Weight, lbs: 885 (shipping) 1011 (operation)
- Purge: 1.5” fpt
SUBMITTAL SHEET
- Download:DOWNLOAD
PF-64H-040B
- Flow Rate: 400 GPM
- Motor: 15 HP
- Connection: 4" flng (In) 4" flng (Out)
- Volume: 15 gal.
- Dimensions: 45"x63"x36"
- Weight, lbs: 945 (shipping) 1072 (operation)
- Purge: 1.5” fpt
SUBMITTAL SHEET
- Download:DOWNLOAD
PF-64H-050
- Flow Rate: 600 GPM
- Motor: 20 HP
- Connection: 6" flng (In) 5" flng (Out)
- Volume: 24 gal.
- Dimensions: 66"x75"x42"
- Weight, lbs: 1111 (shipping) 1311 (operation)
- Purge: 1.5” fpt
SUBMITTAL SHEET
- Download:DOWNLOAD
PF-64H-060A
- Flow Rate: 900 GPM
- Motor: 30 HP
- Connection: 6" flng (In) 6" flng (Out)
- Volume: 40 gal.
- Dimensions: 57"x88"x46"
- Weight, lbs: 1531 (shipping) 1863 (operation)
- Purge: 1.5” fpt
SUBMITTAL SHEET
- Download:DOWNLOAD
PF-64H-060B
- Flow Rate: 1200 GPM
- Motor: 40 HP
- Connection: 8" flng (In) 6" flng (Out)
- Volume: 40 gal.
- Dimensions: 59"x88"x46"
- Weight, lbs: 1963 (shipping) 2295 (operation)
- Purge: 1.5” fpt
SUBMITTAL SHEET
- Download:* Consult Factory
PF-64H-080-AP
- Flow Rate: 1670 GPM
- Motor: 50 HP
- Connection: 10" flng (In) 8" flng (Out)
- Volume: 94 gal.
- Dimensions: 77"x102"x54"
- Weight, lbs: 2392 (shipping) 3177 (operation)
- Purge: 1.5” fpt
SUBMITTAL SHEET
- Download:DOWNLOAD
* Dimensions are approximate
* Consult factory for higher flow rate packages.
Design conditions for PF-64H models are flow rates listed at 100′ TDH (nominal).
* Control panel enclosures will be NEMA type 3R in lieu of NEMA type 4X.
