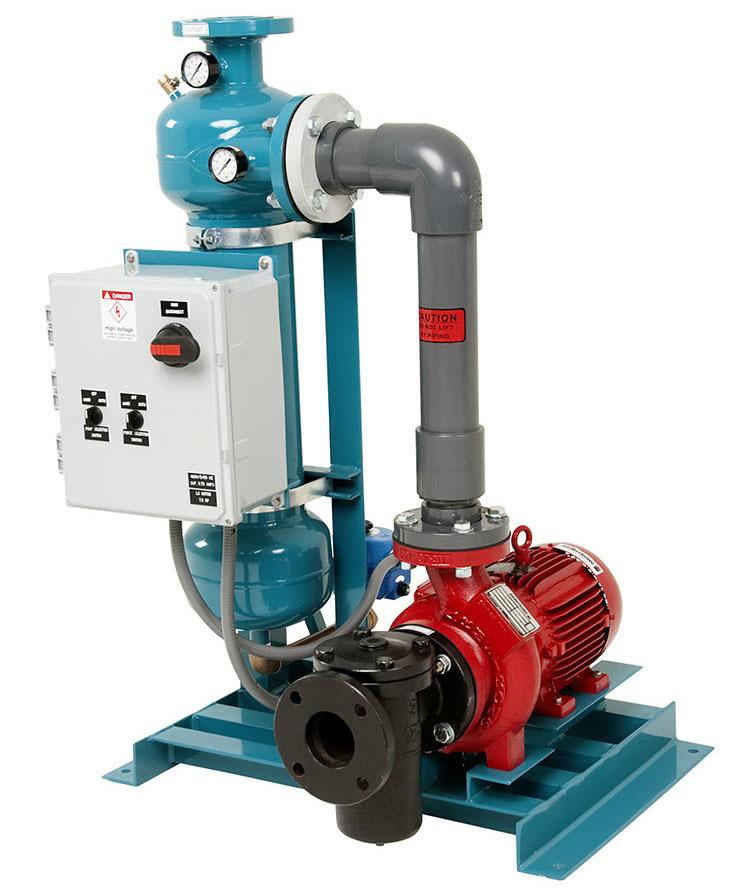

PF-64 Series
PUMP PACKAGE SYSTEM 150 PSI
Details
- Available in flow rates from 50 to 1,200 GPM.
- Standard unit equipped with PF-61 series separator.
- Cast iron bronze fitted, close-coupled end suction centrifugal pump with TEFC motor.
- Cast iron pre-strainer with removable SST basket.
- Control Panel – UL labeled NEMA 4X cabinet with door disconnect switch, motor short circuit/overload protection, adjustable purge timer, purge and pump HOA switches.
- Skid – fusion bonded polyester coated carbon steel.
- Sch. 80 PVC interconnecting piping.
- Automatic purge complete with electrically actuated industrial grade ball valve.
- Options: Manual purge, removable dome, 22 1/2° profile separator.
- Designed for applications requiring higher pump head such as basin sweeper installations and non-chemical water treatment.
Select a Model
View product summary
PF-64-012
PF-64-015
PF-64-020
PF-64-025
PF-64-030
PF-64-040A
PF-64-040B
PF-64-050
PF-64-060A
PF-64-060B
* Dimensions are approximate
* Consult factory for higher flow rate packages.
Design conditions for PF-64H models are flow rates listed at 100′ TDH (nominal).
*Control panel enclosures will be NEMA type 3R in lieu of NEMA type 4X.
