PF-61 Series

DESIGNED AS A SEPARATOR

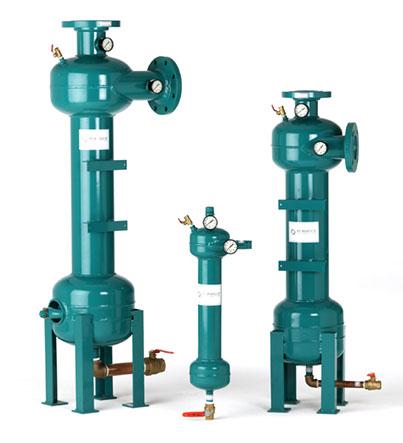

pf-612

Details

  • Available in flow rates from 6 to 18,000 GPM.
  • Removes suspended particulate as low as 45 micron.
  • 150 psi working pressure.
  • Fusion bonded polyester coated carbon steel vessel.
  • Accumulation chamber clean-out (std. on 4″ unit and larger).
  • True tangential entry.
  • Industrial grade manual purge valve.
  • 1/4″ manual air bleed valve.
  • 0-160 psi gauges on inlet/outlet.
  • Options: Auto purge, higher pressure ratings, ASME code stamp and stainless steel construction available.

PF-61 Series DatasheetDOWNLOAD

Operation & Maint. ManualDOWNLOAD

Sample Spec. SheetDOWNLOAD

Select a Model

View product summary

PF-61-005
  • Flow Range: 6-12 GPM
  • Connection: 1/2" mpt
  • Purge: 1/2" fpt
  • Volume: 1 gal.
  • Dimensions: 8"x32"x8"
  • Weight, lbs: 17 (shipping) 26 (operation)
CONFIGURATIONS: Auto Purge 120V
  • Flow Range: 12-24 GPM
  • Connection: 3/4" mpt
  • Purge: 3/4" fpt
  • Volume: 1 gal.
  • Dimensions: 8"x32"x8"
  • Weight, lbs: 18 (shipping) 28 (operation)
CONFIGURATIONS: Auto Purge 120V
  • Flow Range: 20-45 GPM
  • Connection: 1" mpt
  • Purge: 3/4" fpt
  • Volume: 2 gal.
  • Dimensions: 9"x34"x8"
  • Weight, lbs: 25 (shipping) 38 (operation)
CONFIGURATIONS: Auto Purge 120V
  • Flow Range: 35-70 GPM
  • Connection: 1 1/4" mpt
  • Purge: 1" fpt
  • Volume: 2 gal.
  • Dimensions: 9"x37"x8"
  • Weight, lbs: 26 (shipping) 39 (operation)
CONFIGURATIONS: Auto Purge 120V
  • Flow Range: 50-100 GPM
  • Connection: 1 1/2" mpt
  • Purge: 1" fpt
  • Volume: 2 gal.
  • Dimensions: 9"x37"x8"
  • Weight, lbs: 27 (shipping) 40 (operation)
CONFIGURATIONS: Auto Purge 120V
  • Flow Range: 65-135 GPM
  • Connection: 2" mpt
  • Purge: 1" fpt
  • Volume: 7 gal.
  • Dimensions: 13"x45"x12"
  • Weight, lbs: 74 (shipping) 125 (operation)
CONFIGURATIONS: Auto Purge 120V
  • Flow Range: 100-200 GPM
  • Connection: 2 1/2" mpt
  • Purge: 1" fpt
  • Volume: 7 gal.
  • Dimensions: 13"x45"x12"
  • Weight, lbs: 77 (shipping) 130 (operation)
CONFIGURATIONS: Auto Purge 120V
  • Flow Range: 160-315 GPM
  • Connection: 3" flng
  • Purge: 1" fpt
  • Volume: 7 gal.
  • Dimensions: 14"x48"x13"
  • Weight, lbs: 98 (shipping) 156 (operation)
CONFIGURATIONS: Auto Purge 120V
  • Flow Range: 220-440 GPM
  • Connection: 4" flng
  • Purge: 1 1/2" fpt
  • Volume: 12 gal.
  • Dimensions: 24"x58"x15"
  • Weight, lbs: 175 (shipping) 275 (operation)
CONFIGURATIONS
  • Flow Range: 375-750 GPM
  • Connection: 5" flng
  • Purge: 1 1/2" fpt
  • Volume: 19 gal.
  • Dimensions: 25"x70"x16"
  • Weight, lbs: 256 (shipping) 414 (operation)
CONFIGURATIONS
  • Flow Range: 620-1245 GPM
  • Connection: 6" flng
  • Purge: 1 1/2" fpt
  • Volume: 32 gal.
  • Dimensions: 28"x82"x18"
  • Weight, lbs: 385 (shipping) 650 (operation)
CONFIGURATIONS
  • Flow Range: 1170-2355 GPM
  • Connection: 8" flng
  • Purge: 1 1/2" fpt
  • Volume: 52 gal.
  • Dimensions: 30"x96"x20"
  • Weight, lbs: 570 (shipping) 1002 (operation)
CONFIGURATIONS
  • Flow Range: 1965-3930 GPM
  • Connection: 10" flng
  • Purge: 2" fpt
  • Volume: 98 gal.
  • Dimensions: 38"x117"x25"
  • Weight, lbs: 996 (shipping) 1809 (operation)
CONFIGURATIONS

* Dimensions are approximate
* Consult factory for voltages not listed
Consult factory for higher flow rate packages
